A decision tree is a type of supervised machine learning used to categorize or make predictions based on how a previous set of questions were answered. The model is a form of supervised learning, meaning that the model is trained and tested on a set of data that contains the desired categorization.

The decision tree may not always provide a clear-cut answer or decision. Instead, it may present options so the data scientist can make an informed decision on their own. Decision trees imitate human thinking, so it’s generally easy for data scientists to understand and interpret the results.

Before we dive into how a decision tree works, let’s define some key terms of a decision tree.

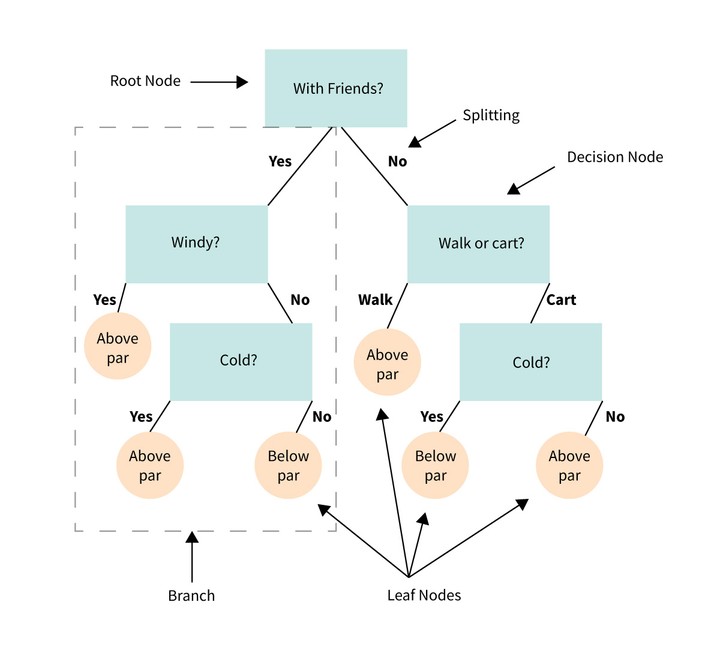

A decision tree resembles, well, a tree. The base of the tree is the root node. From the root node flows a series of decision nodes that depict decisions to be made. From the decision nodes are leaf nodes that represent the consequences of those decisions. Each decision node represents a question or split point, and the leaf nodes that stem from a decision node represent the possible answers. Leaf nodes sprout from decision nodes similar to how a leaf sprouts on a tree branch. This is why we call each subsection of a decision tree a “branch.” Let’s take a look at an example for this. You’re a golfer, and a consistent one at that. On any given day you want to predict where your score will be in two buckets: below par or over par.

While you are a consistent golfer, your score is dependent on a few sets of input variables. Wind speed, cloud cover and temperature all play a role. In addition, your score tends to deviate depending on whether or not you walk or ride a cart. And it deviates if you are golfing with friends or strangers.

In this example, there are two leaf nodes: below par or over par. Each of the input variables will determine decision nodes. Was it windy? Cold? Did you golf with friends? Did you walk or take a cart? With enough data on your golfing habits (and assuming you are a consistent golfer), a decision tree could help predict how you will do on the course on any given day.

In the golf example, each outcome is independent in that it does not depend on what happened in the previous coin toss. Dependent variables, on the other hand, are those that are influenced by events before them.

Building a decision tree involves construction, in which you select the attributes and conditions that will produce the tree. Then, the tree is pruned to remove irrelevant branches that could inhibit accuracy. Pruning involves spotting outliers, data points far outside the norm, that could throw off the calculations by giving too much weight to rare occurrences in the data.

Maybe temperature is not important when it comes to your golf score or there was a day when you scored really poorly that’s throwing off your decision tree. As you’re exploring the data for your decision tree, you can prune specific outliers like your one bad day on the course. You can also prune entire decision nodes, like temperature, that may be irrelevant to classifying your data.

Well-designed decision trees present data with few nodes and branches. You can draw a simple decision tree by hand on a piece of paper or a whiteboard. More complex problems, however, require the use of decision tree software.

There are two main types of decision trees: categorical and continuous. The divisions are based on the type of outcome variables used.

In a categorical variable decision tree, the answer neatly fits into one category or another. Was the coin toss heads or tails? Is the animal a reptile or mammal? In this type of decision tree, data is placed into a single category based on the decisions at the nodes throughout the tree.

A continuous variable decision tree is one where there is not a simple yes or no answer. It’s also known as a regression tree because the decision or outcome variable depends on other decisions farther up the tree or the type of choice involved in the decision.

The benefit of a continuous variable decision tree is that the outcome can be predicted based on multiple variables rather than on a single variable as in a categorical variable decision tree. Continuous variable decision trees are used to create predictions. The system can be used for both linear and non-linear relationships if the correct algorithm is selected.

Decision trees are useful for categorizing results where attributes can be sorted against known criteria to determine the final category.

Decision trees map possible outcomes of a series of related choices. Some applications for decision trees include:

Customers buying certain products or categories of products might be inclined to buy something similar to what they’re looking for. That’s where recommendation engines come in. They can be used to push the sale of snow gloves with a purchase of skis or recommending another holiday movie after you’ve just finished watching one.

Recommendation engines can be structured using decision trees, taking the decisions made by consumers over time and creating nodes based off of those decisions.

A study conducted in 2009 in Australia tracked a cohort of over 6,000 people and whether or not they had a major depressive disorder over a four-year period. The researchers took inputs like tobacco use, alcohol use, employment status and more to create a decision tree that could be used to predict the risk of a major depressive disorder.

Medical decisions and diagnoses rely on multiple inputs to understand a patient and what may be the best way to treat them. A decision tree application like this can be a valuable tool to health care providers when assessing patients.

A decision tree visually represents cause and effect relationships, providing a simple view of complex processes. They can easily map nonlinear relationships. They are adaptable to solve both classification and regression problems.  With a decision tree, you can clarify risks, objectives and benefits.

Because of the tree structure’s simple flowchart structure, it’s one of the fastest methods to identify significant variables and relationships between two or more variables. If a data scientist is working on a problem with hundreds of variables, the decision tree will help identify the most significant ones. They’re also considered easy to understand even for people without an analytical background. The visual output means statistical knowledge is not necessary. It’s usually easy to see the relationships between the variables.

Sometimes, however, decision trees have limitations. Understanding the advantages and disadvantages of decision trees can help make the case for using one.

Decision tree algorithms are powerful tools for classifying data and weighing costs, risks and potential benefits of ideas. With a decision tree, you can take a systematic, fact-based approach to bias-free decision making. The outputs present alternatives in an easily interpretable format, making them useful in an array of environments. As a data scientist, the decision tree will be a key part of your tool kit.
